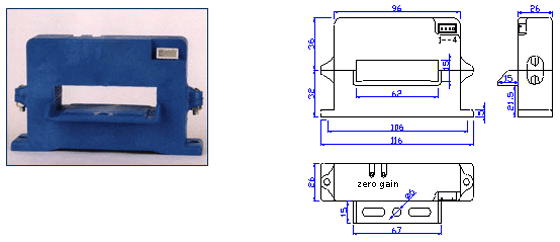

HEC-C2 Series
Publish Time:2012/7/25   |    Click:1120

 Electrical characteristics

Type

HEC300-C2

HEC500-C2

HEC600-C2

HEC800-C2

HEC1000-C2

Rated Current

300A

500A

600A

800A

1000A

Linear Range

1.5 times of the maximum of measuring range

Output Voltage

4V 、 5V (output current 0-20mA or 4-20mA)

Accuracy

±1%

Offset Voltage

±20mV

Hysteresis Error

±10mV

Temperature Drift

0.025%/ ℃

Response Time

< 10μS di/dt=50A/μS

Power Supply

± 12V 、± 15V 、 +24V (± 5% )

Current Consumption 25mA

Isolation 3KV AC 50Hz/min

Operating Temperature Range -10 ℃ ~ +80 ℃

Storage Temperature Range -25 ℃ ~ +85 ℃
